Stop Bricking Your Rig | Hashrate Hal
The Ultimate Firmware Guide
Most people unbox their NerdMiner, plug it in, watch the numbers scroll for five minutes, and never touch the settings again. That’s fine for tourists. But if you are reading this, you aren't a tourist. You’re a builder.
The stock firmware on most ESP32 miners (usually pre-flashed version 1.6.0 or older) is solid, but it’s safe. It’s designed to be stable, not fast. If you want to squeeze every last drop of hashing power out of that silicon, or if you want a user interface that actually provides meaningful data, you need to leave the "stock" world behind.
The Prep Work: Why Most Flashes Fail
Before you even open a browser, you need to check your hardware. 90% of "bricked" devices aren't broken; they are just connected poorly. There are two primary points of failure that cause the infamous "Timed Out" error.
You cannot use the charging cable that came with your vape or your cheap headphones. Those often lack the D+ and D- data pins required for serial communication. You need a 10Gbps rated USB-C data cable. If your computer doesn't make the "ding" sound when you plug it in, stop. Get a better cable.
The Hidden Driver Issue
The ESP32 chip communicates via a virtual COM port (UART). Windows often fails to install this automatically. You must search for and install the "Silicon Labs CP210x Universal Windows Driver." Without this, the web flasher will just sit there spinning, unable to see the device.
Choosing Your Firmware Flavor
Not all code is created equal. Depending on your goals—pure speed vs. ease of use—you should choose your fork carefully.
| Firmware Branch | Best For... | Pros | Cons |
|---|---|---|---|
| Public Pool | Purists & Efficiency | Lightweight, maximum hashrate stability, open-source. | Minimal UI, requires manual config. |
| BitMaker | Visuals & Monitoring | Beautiful mobile GUI, detailed logs, easy fan control. | Uses slightly more memory overhead. |
The "Boot Mode" Secret
If you try to flash and get a Failed to Connect or Timed Out Waiting for Packet Header error, your device is likely not in Boot Mode. The chip needs to be manually told to accept new code.
The Finger Gymnastics:
- Hold down the BOOT button (usually the bottom button on the right side).
- While holding BOOT, press and release the RESET button (left side or top).
- Release the BOOT button.
The screen will likely stay black. This is good! It means the chip is waiting for new code. Now, try the web flasher again.
After flashing, if your screen looks "scrambled" or has static, you likely flashed the firmware for the wrong screen type (AMOLED vs LCD). Check your receipt to see which board you actually bought—the T-Display S3 and S3 AMOLED use different .bin files.
Did You Actually Brick It?

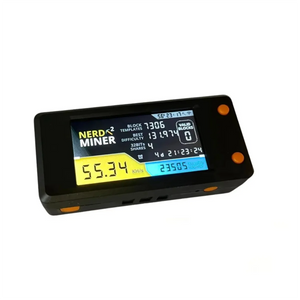

Sometimes, hardware just fails. If your board is truly dead, grab a fresh V2 pre-flashed with the latest stable code.
$59.99 Get A Fresh NerdMinerThe "Undo" Button
Flashing involves rewriting the device's partition table. If the power cuts out halfway through (e.g., loose cable), you will have a "soft brick" but don't panic. It is very hard to permanently kill an ESP32. simply use the Erase Flash tool in the Espressif web flasher to wipe it clean and start over.
