Heltec T114 Mesh Node 2.0 LoRa / GPS Devboard
Heltec T114 Mesh Node 2.0 LoRa / GPS Devboard
Couldn't load pickup availability
HELTEC T114 REV 2.0 MESH NODE: ULTIMATE LORA/GPS DEVBROAD

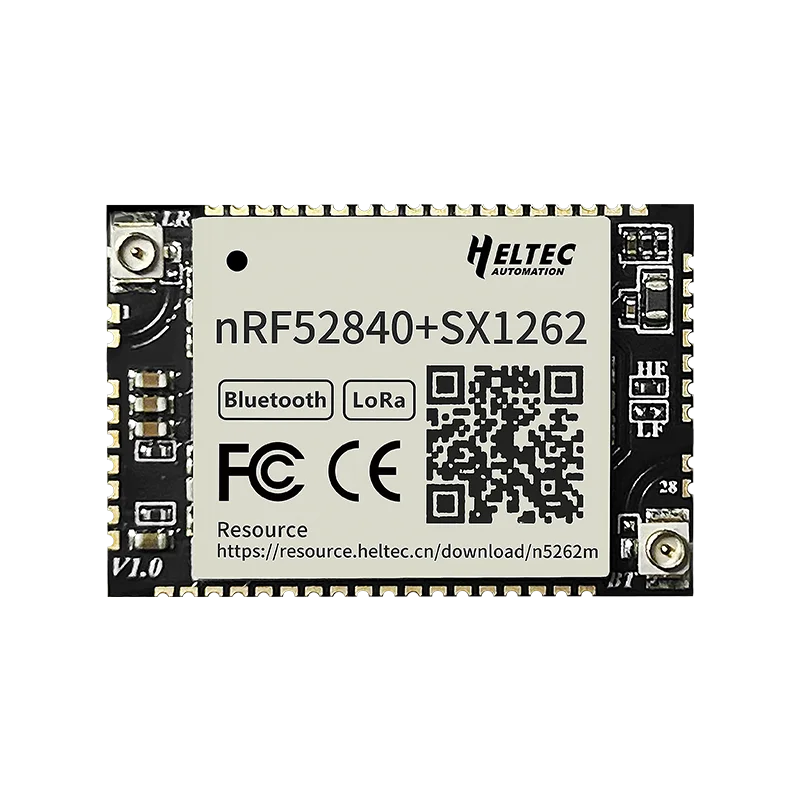

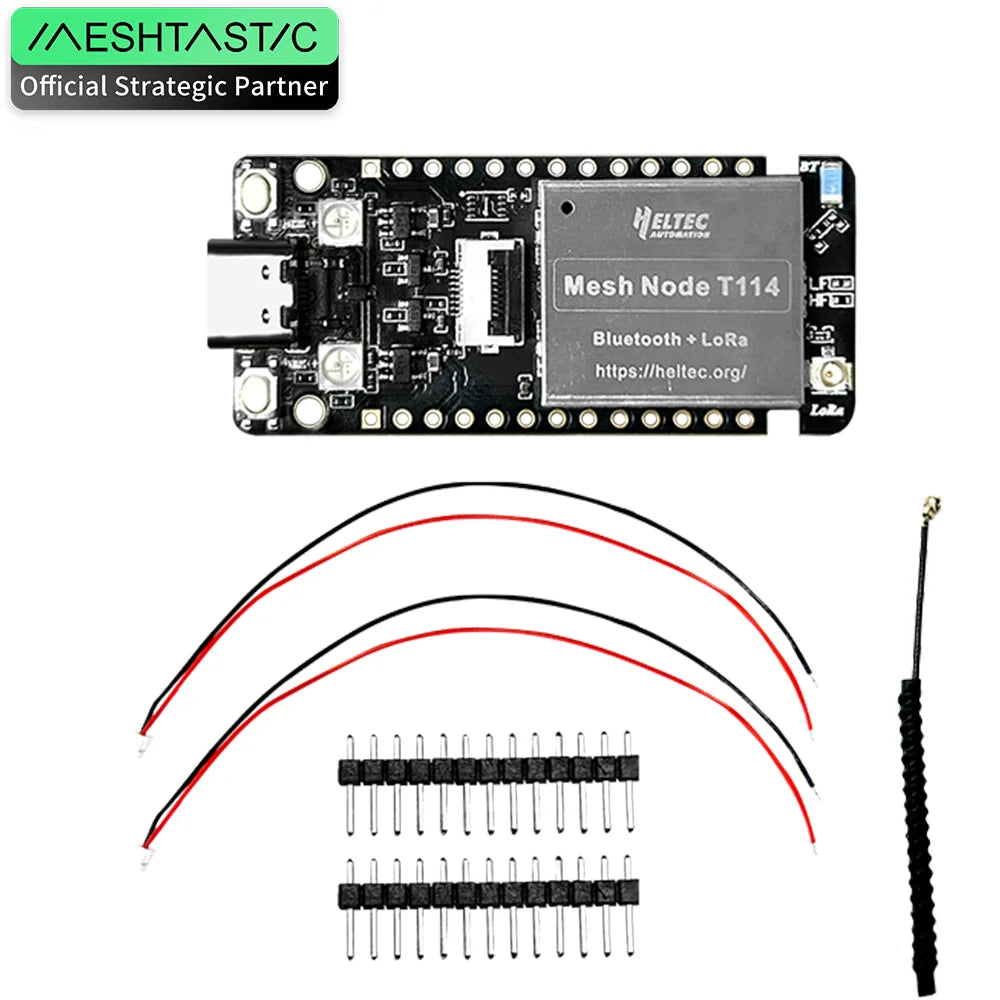

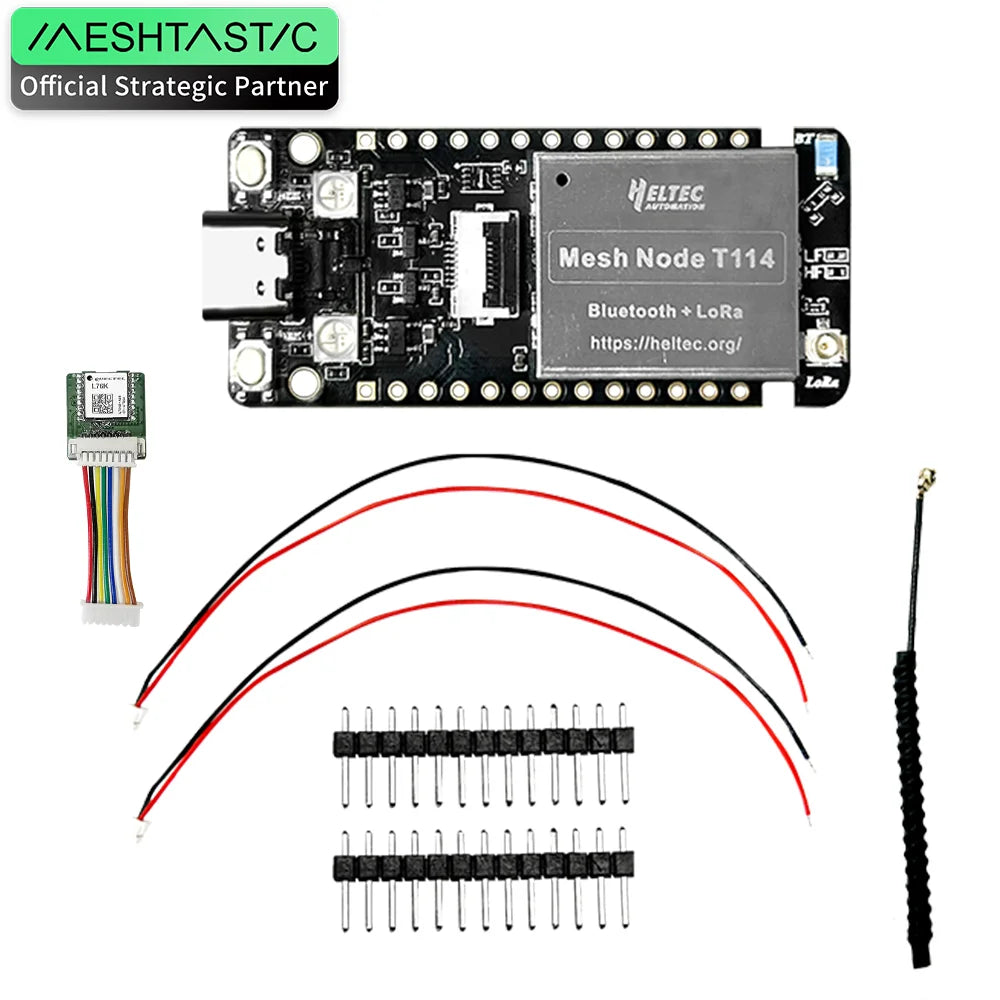

The Heltec Mesh Node T114 V2.0 is the completely revised, low-power development board for Meshtastic, LoRaWAN, and BLE tracking applications. Built on the Nordic nRF52840 MCU and the SX1262 LoRa chip, this second-generation board features a 6-layer PCB with immersion gold process for superior signal integrity and reliability. Available in multiple configurations, including GNSS, Screen, and Soft Antenna options.
Rev 2.0 Upgrades and Core Features
- Enhanced Stability (Rev 2.0): Upgraded from 4 to 6 PCB layers with immersion gold process, providing a more complete RF ground and superior signal transmission quality.
- Ultra-Low Power: Achieves a minimal 11 µA in deep sleep consumption, maximizing field deployment and battery life.

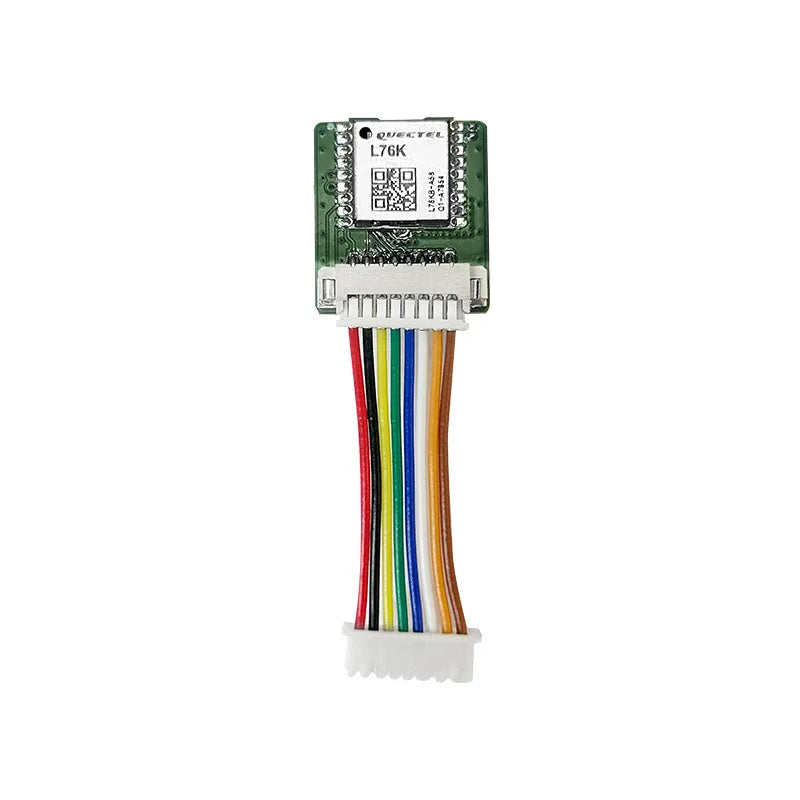

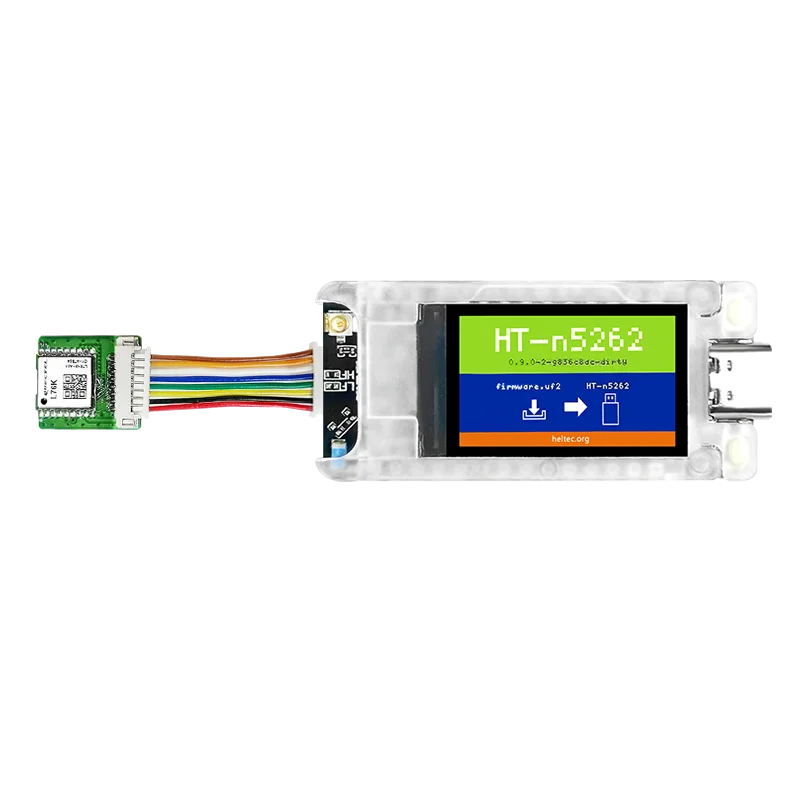

- Positioning Ready: Supports GNSS and GPS module integration (available as an option) via a dedicated 1.25x8P connector for precise location tracking.
- Dual Wireless: Features LoRa (SX1262) for long-range mesh networking and Bluetooth LE 5 (nRF52840) for local connectivity.

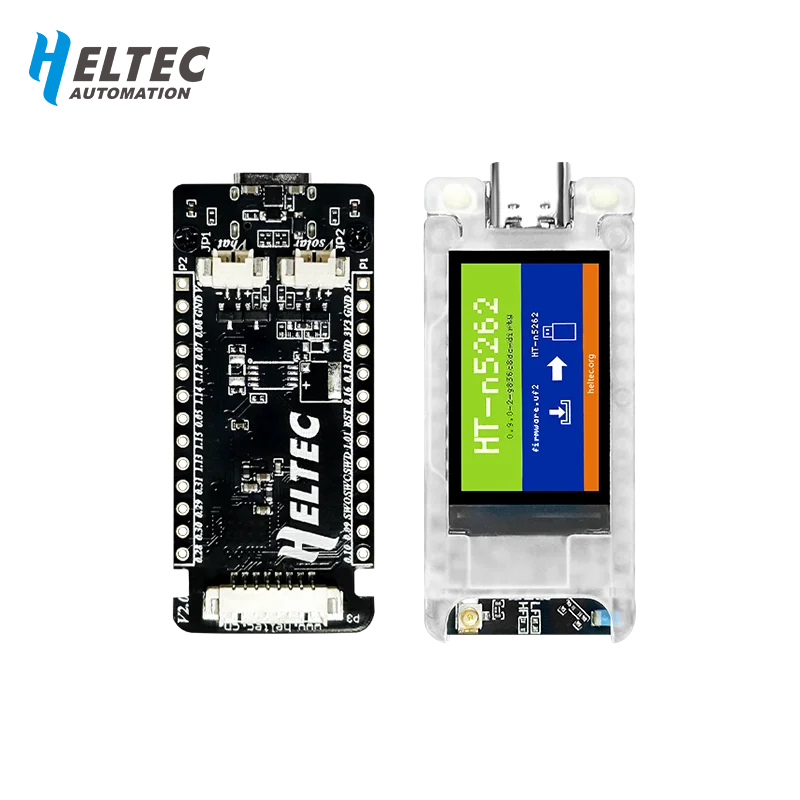

- Flexible Power Inputs: Integrates charging circuits for LiPo battery, Type-C USB, and Solar Panel via dedicated 1.25x2P connectors.
Technical Specifications Summary
Model: Mesh Node T114 V2 (Rev 2.0)
MCU: nRF52840 (1M ROM, 256KB SRAM)
LoRa Chip: SX1262 | Frequency Options: 863-870MHz / 902-928MHz
Bluetooth: BLE 5, Bluetooth mesh
Max. Sensitivity: -135dBm@SF12 BW=125KHz

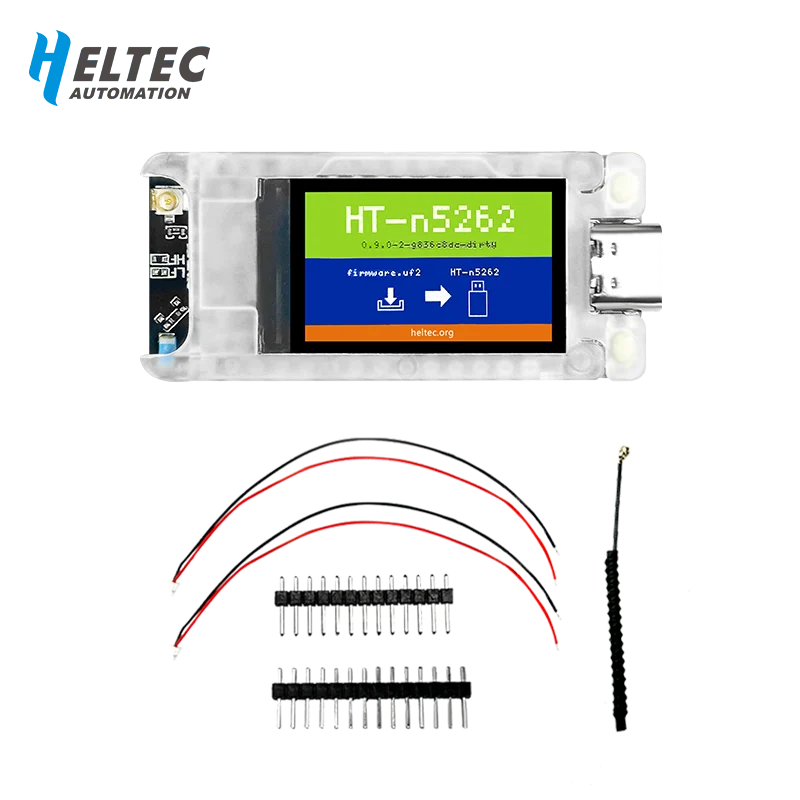

Display (Optional): 1.14 inch TFT-LCD display
Dimensions: 50.80 x 22.86mm
⚙️ Click for Full Hardware & Customization Details

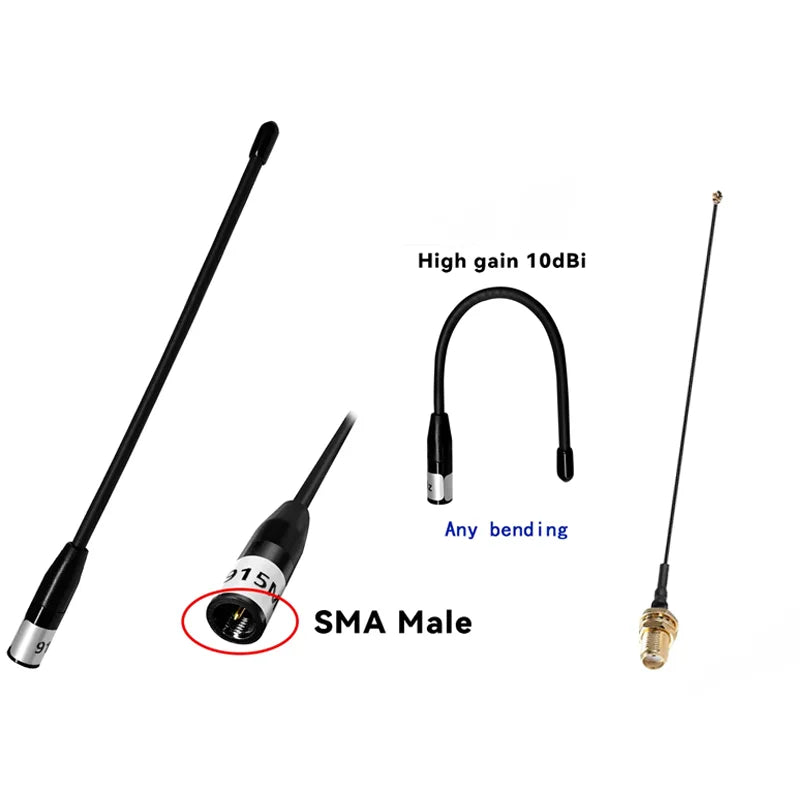

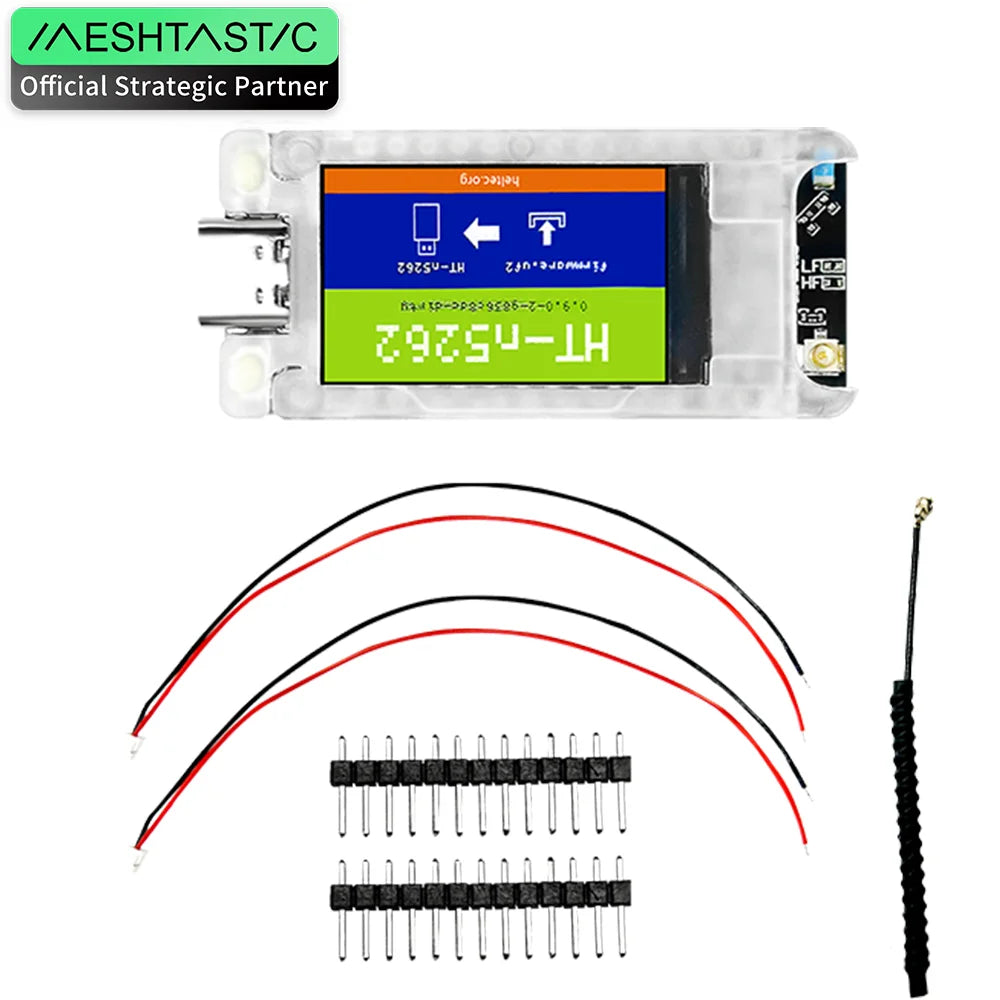

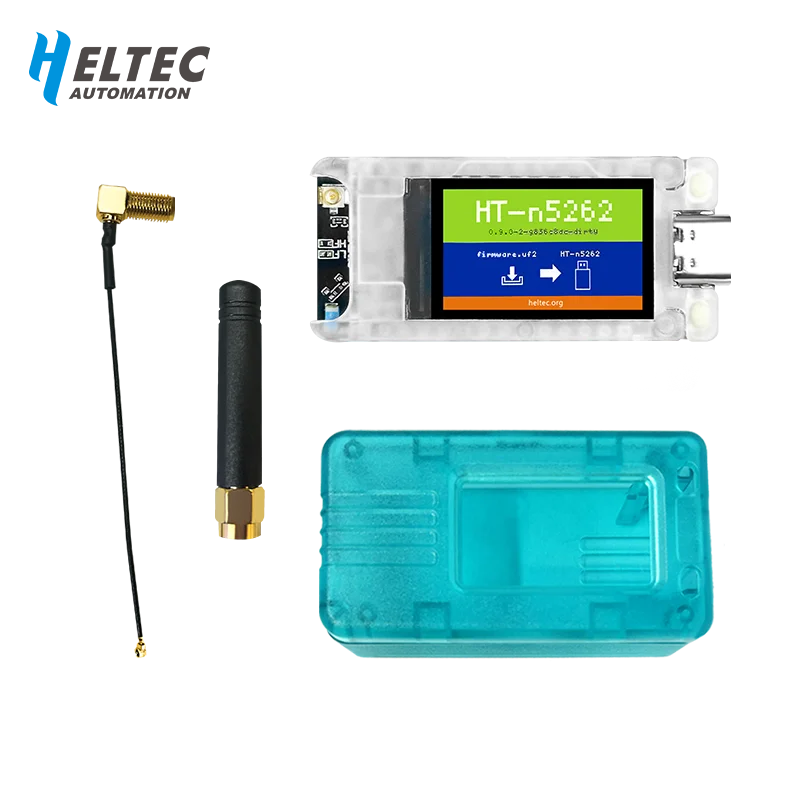

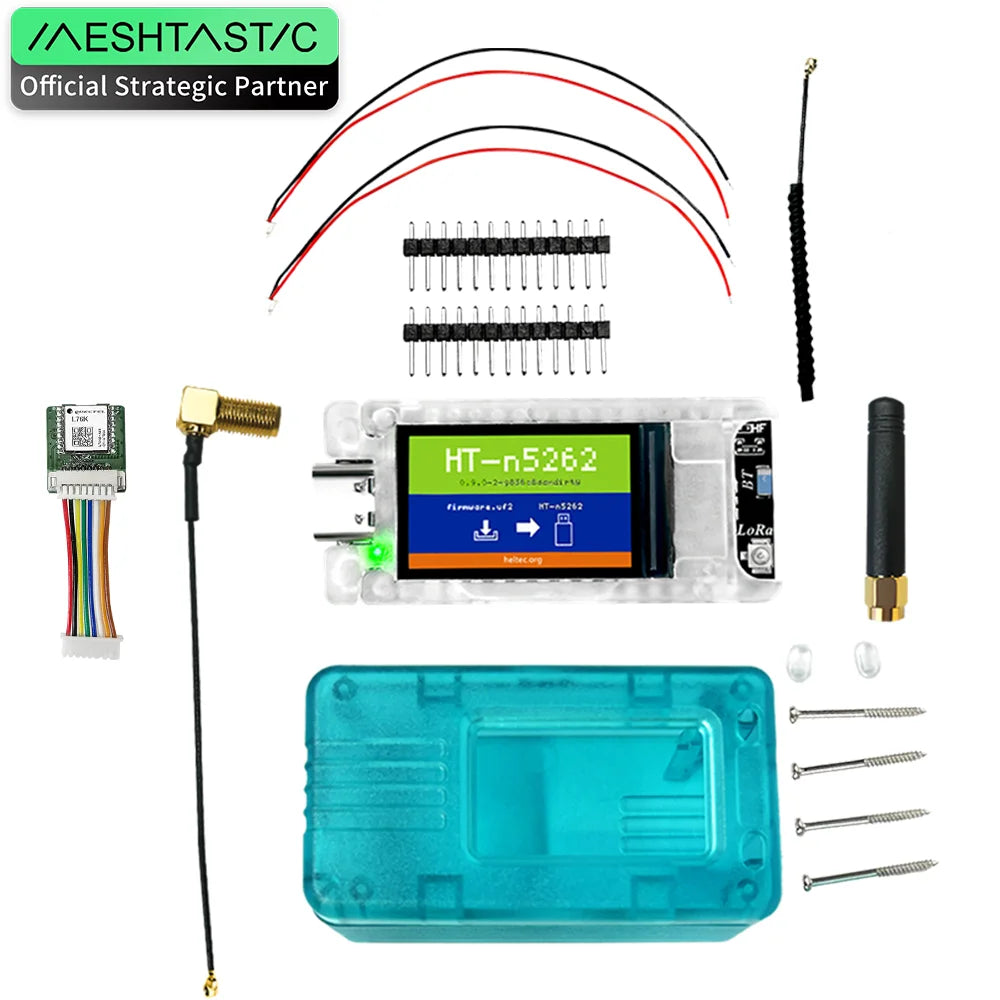

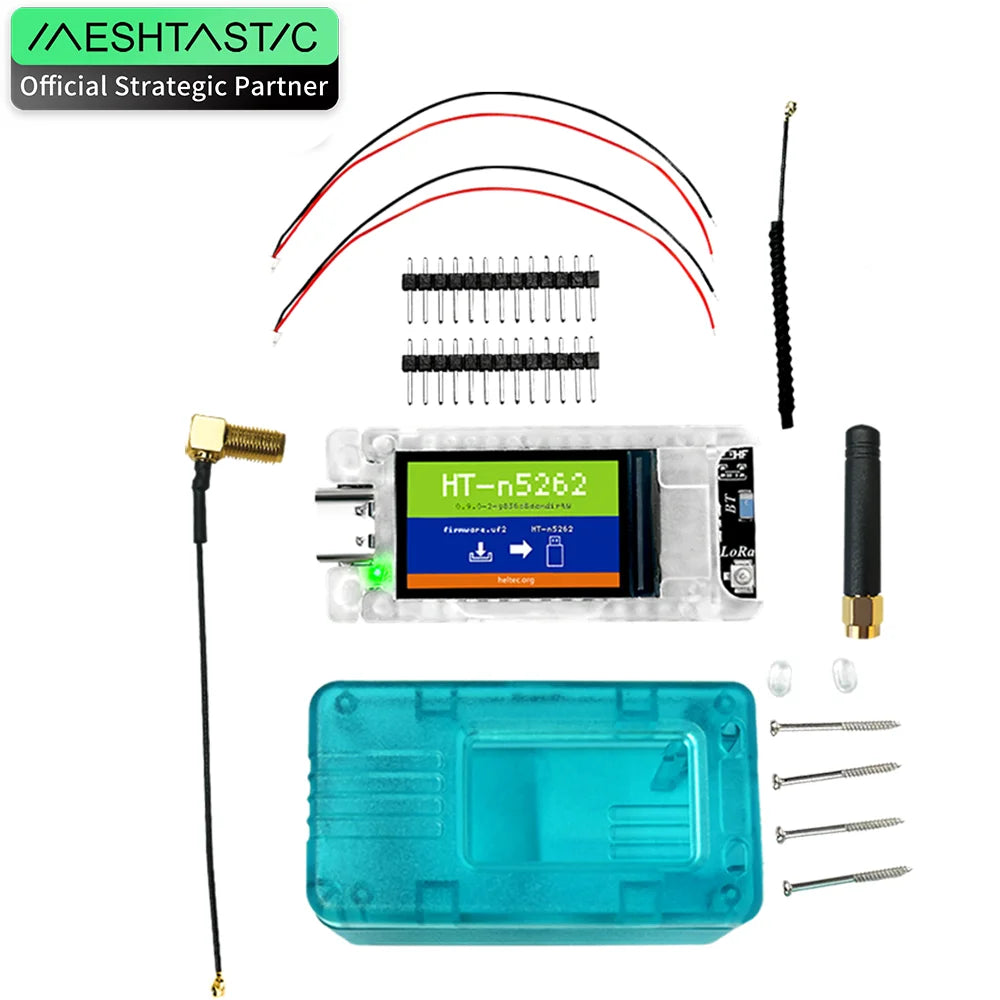

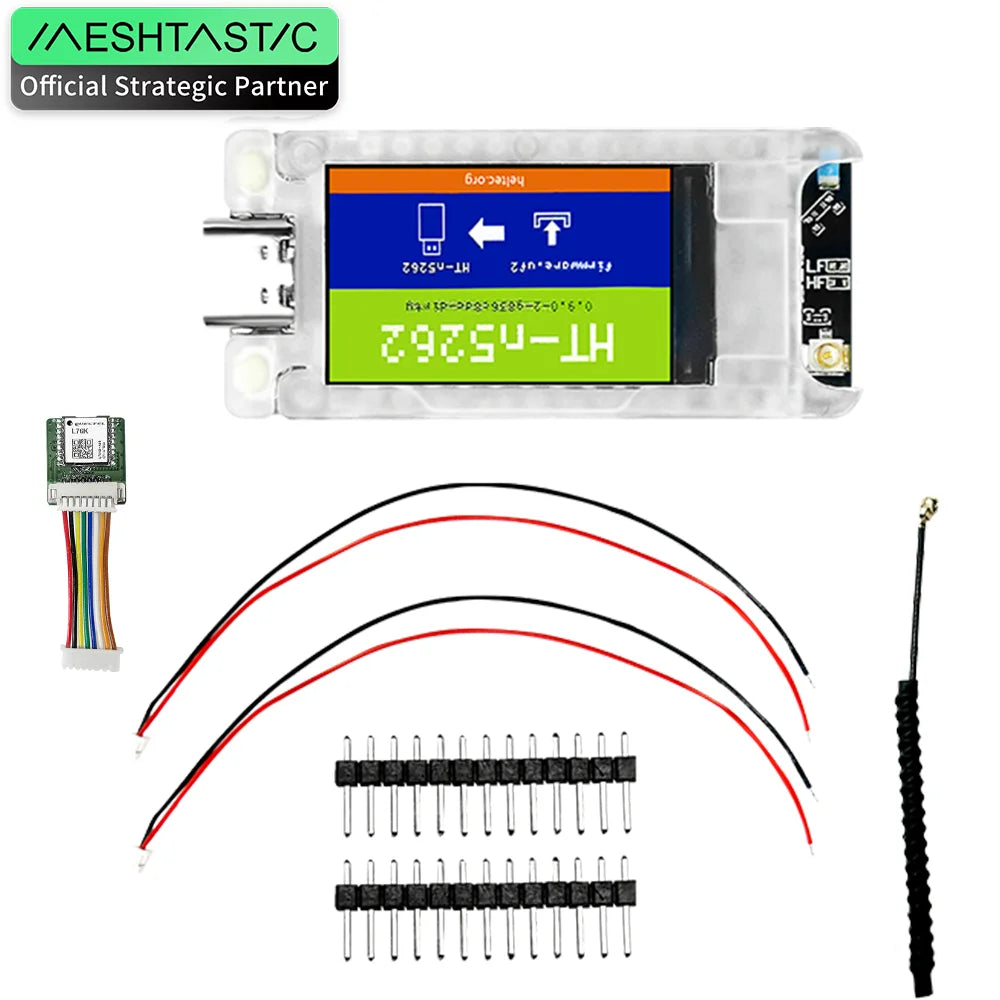

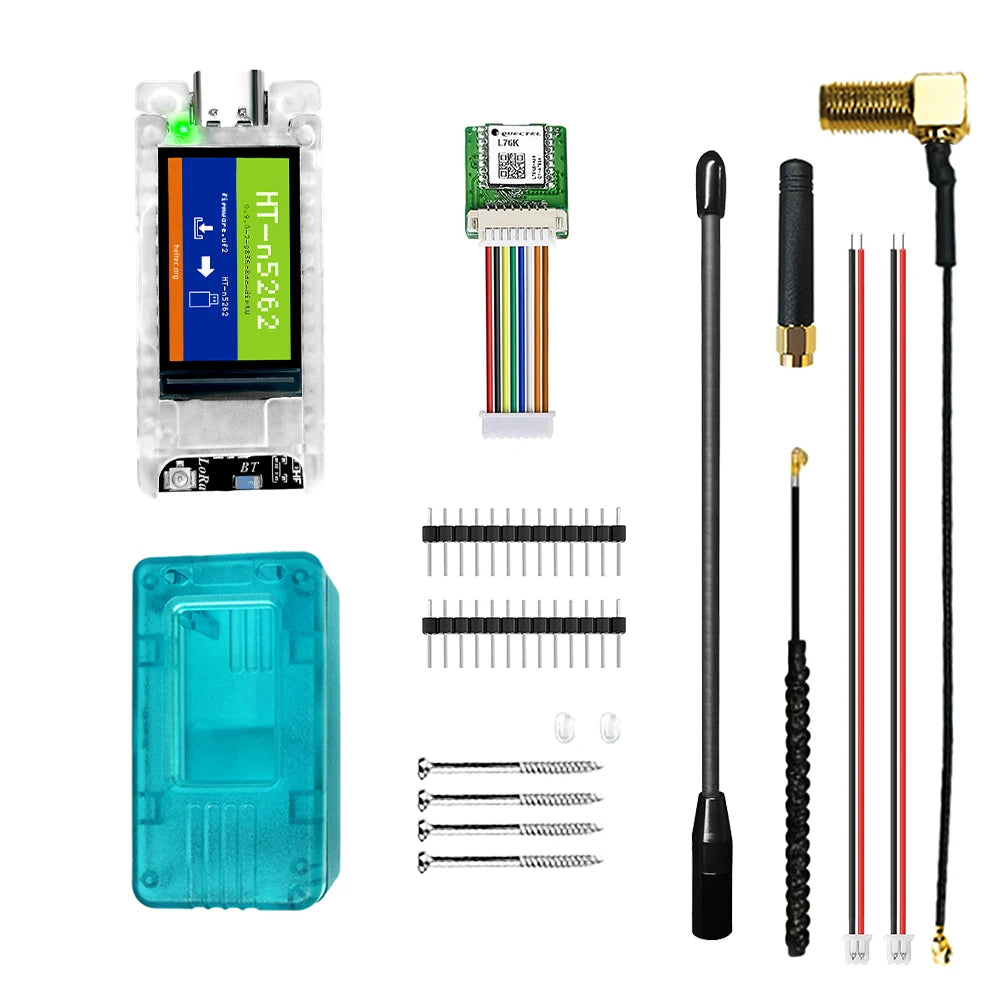

The T114 Rev 2.0 includes extensive hardware resources, including 4 x SPI, 2 x TWI, 2 x UART, 4 x PWM, QPSI, I2S, PDM, QDEC, and more. It is fully compatible with the Arduino development environment via Heltec frameworks and libraries. The board supports operating temperatures from -20°C to 70°C. Check available options for Screen, GNSS/GPS Module, and Antenna configurations.
Keywords: Heltec T114 V2, Mesh Node T114 Rev 2.0, Meshtastic Tracker, nRF52840, SX1262 LoRaWAN, BLE 5, GPS Module, GNSS Positioning, Low Power Devboard, Arduino Compatible, 868MHz, 915MHz, T114 Without Screen, Screen GNSS Case.
