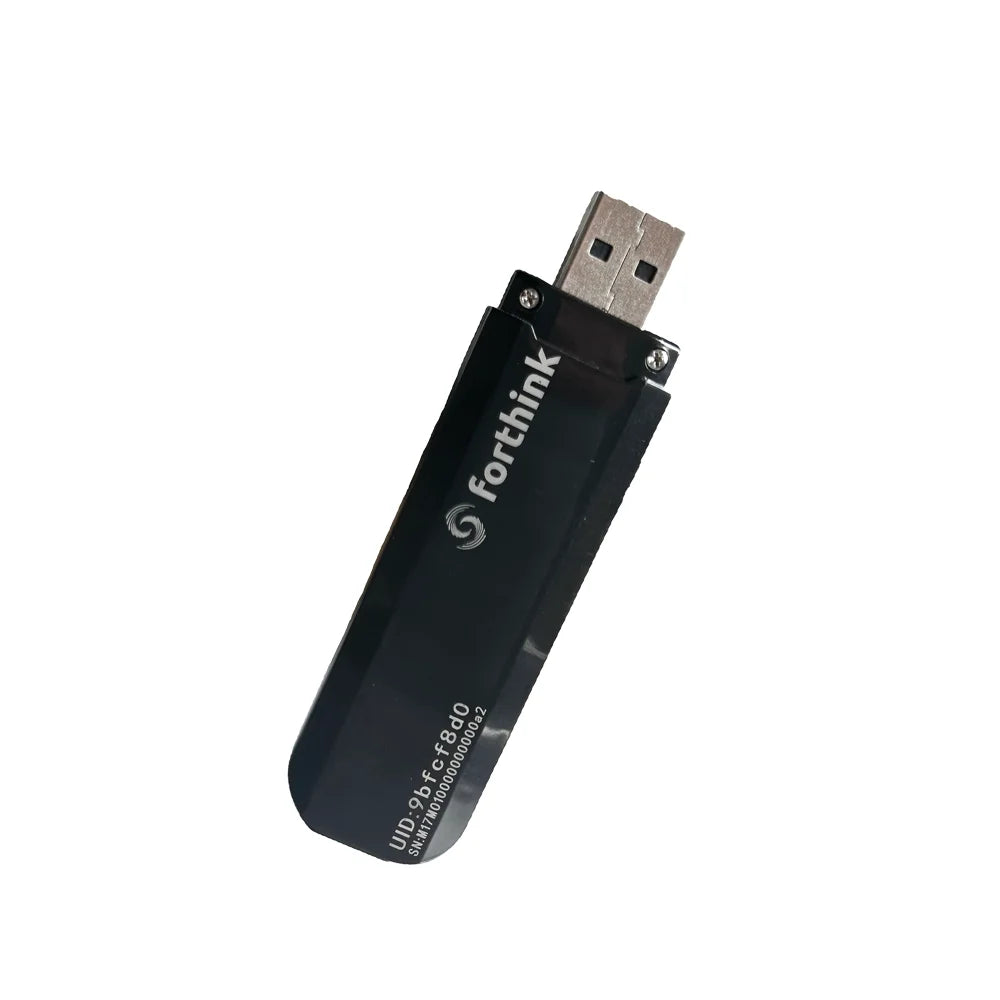

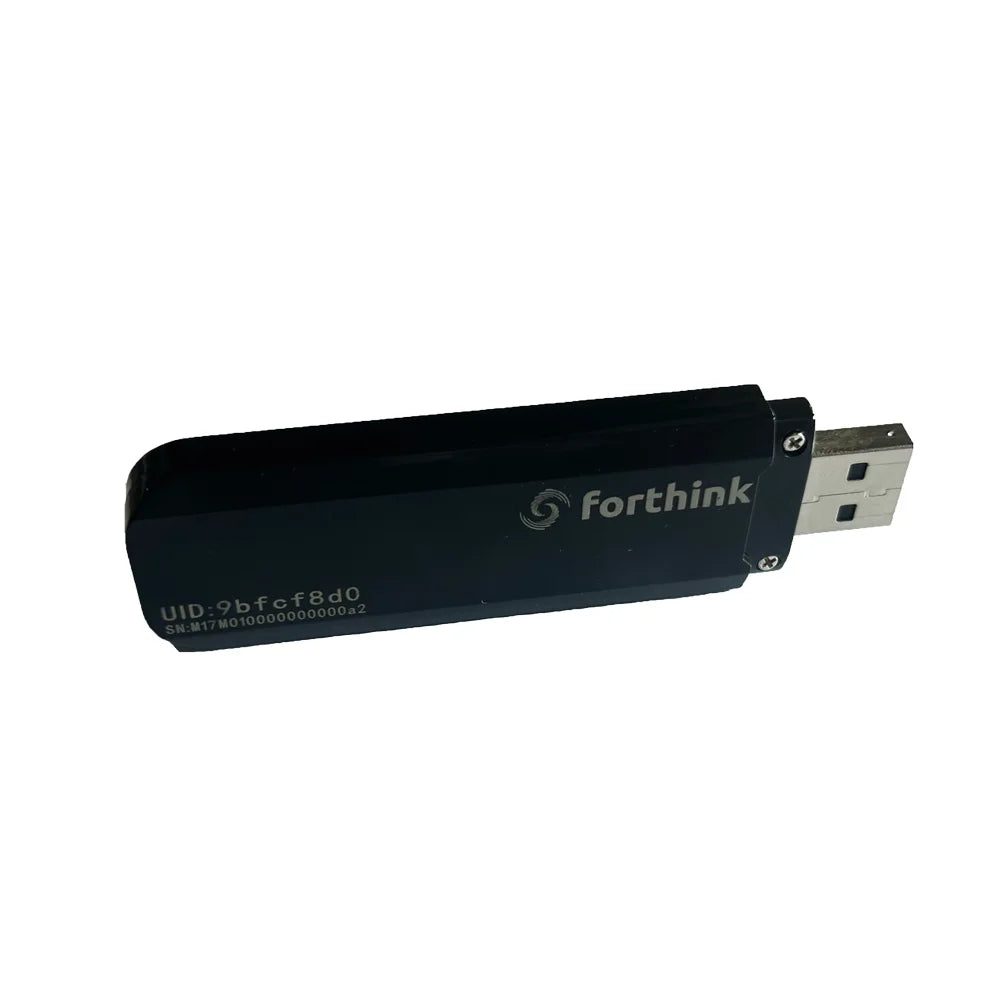

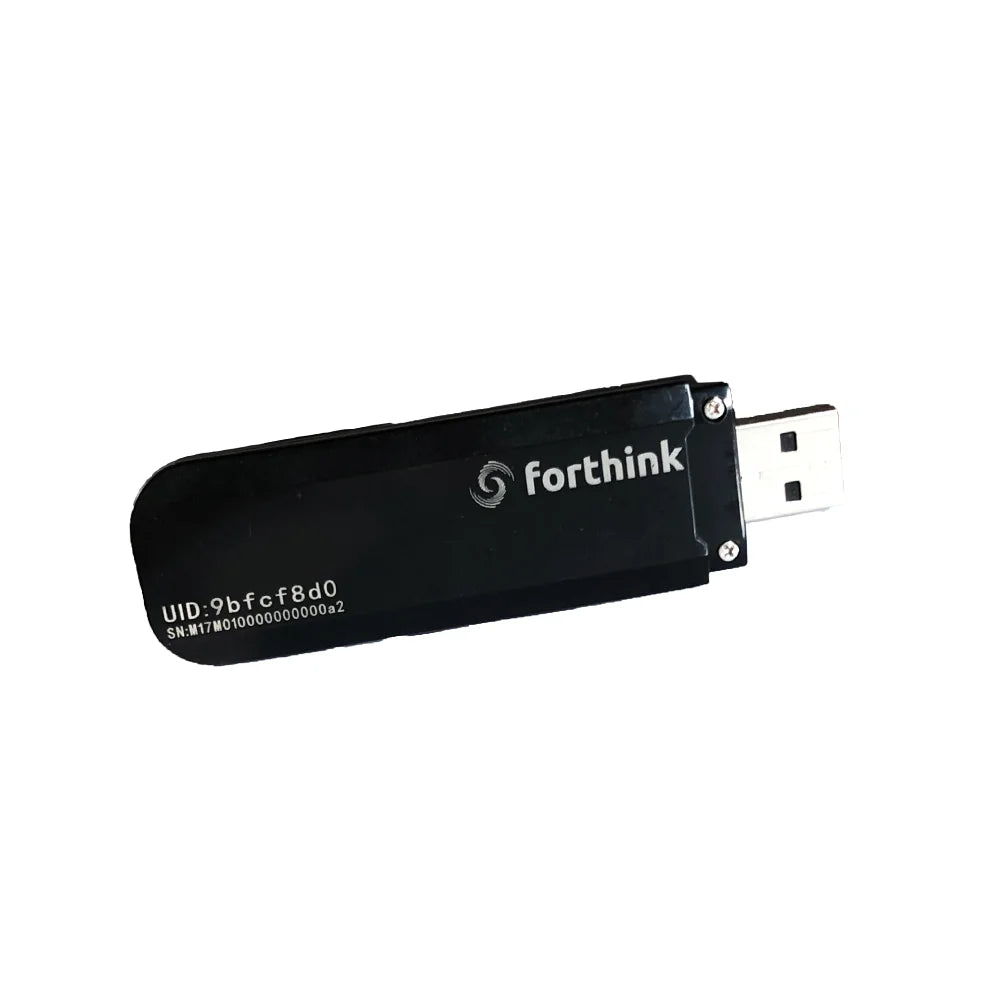

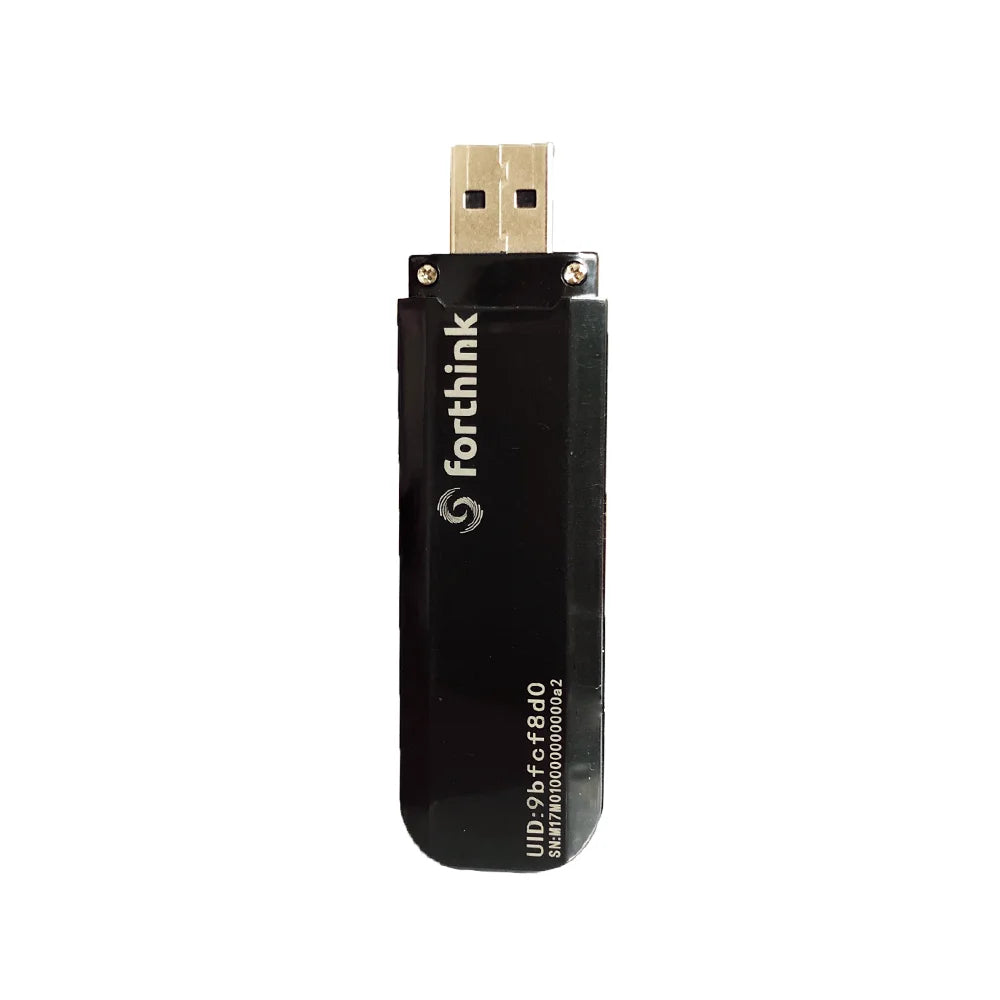

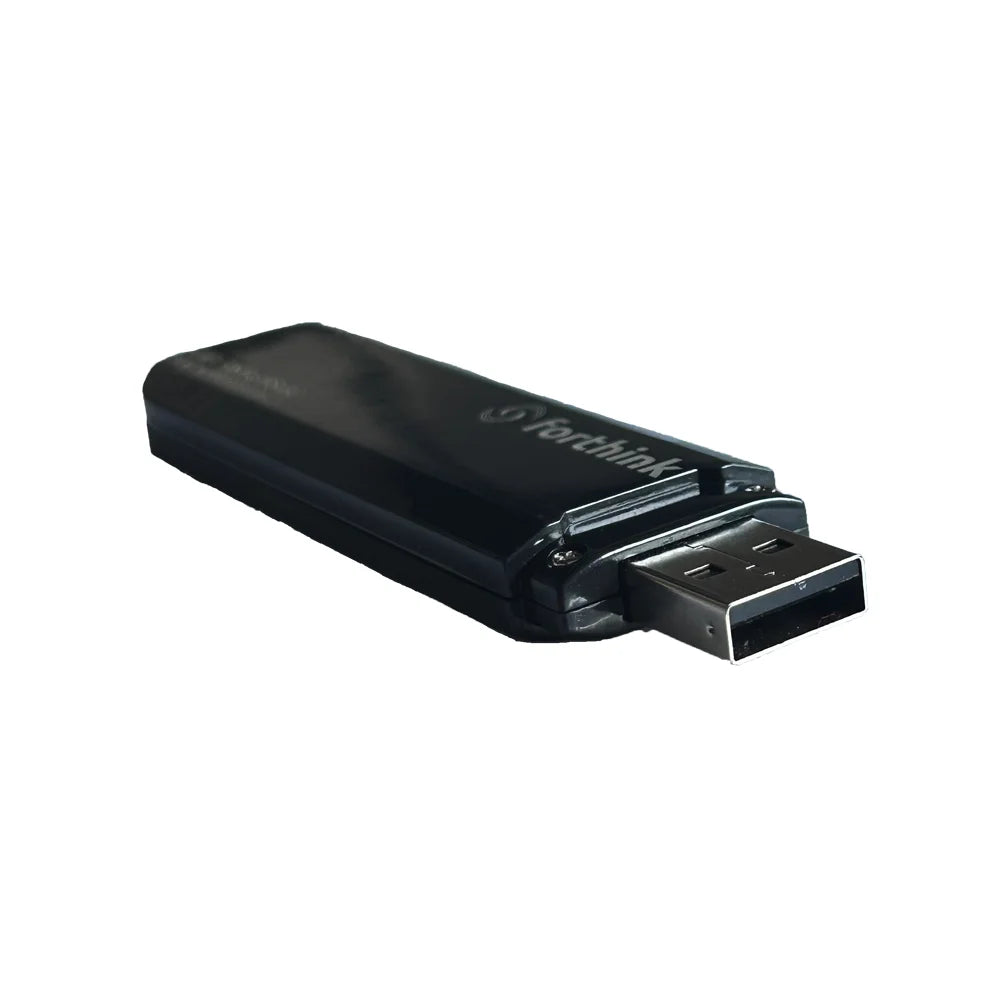

HELTEC UWB DONGLE SNIFFER

Ultra Wideband Detection Analyzer for Development and Debugging

The Heltec UWB Dongle Sniffer is an essential tool for engineers and developers working with Ultra Wideband (UWB) technology. This compact device functions as a UWB Detection Analyzer and provides crucial development and debugging aids with quick start support.

Key UWB Analysis Functions:

• Wireless Communication and Ranging: Supports essential UWB operations for communication analysis.
• Localization Methods: Enables TOF (Time of Flight) / TDOA (Time Difference of Arrival) localization analysis.
• Data Acquisition: Capable of Packet Acquisition for in-depth data review.
• Protocol Analysis: Provides functionality for comprehensive Protocol Analysis of UWB traffic.
• UWB Listening: Offers a dedicated mode for passive UWB Listening and detection.

Technical & Hardware Specifications:

Engineered by Heltec Automation, this sniffer combines power and precision in a small form factor.

• CPU Core: Powered by an ARM Cortex-M33 32-bit processor.
• Host Interface: Connects easily via USB-A (Host communication interface).
• Power Supply: Uses the USB interface for power.
• Working Voltage: Requires a working voltage between 4.5-5.5

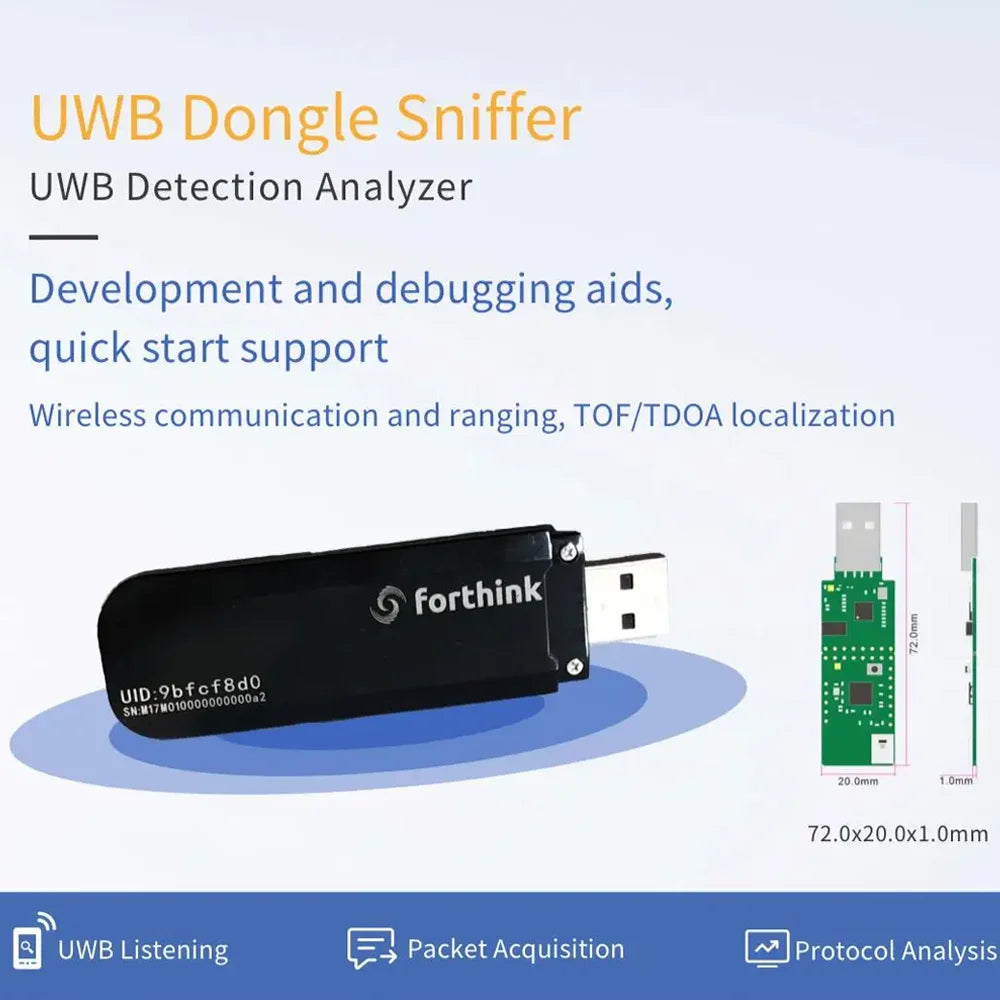

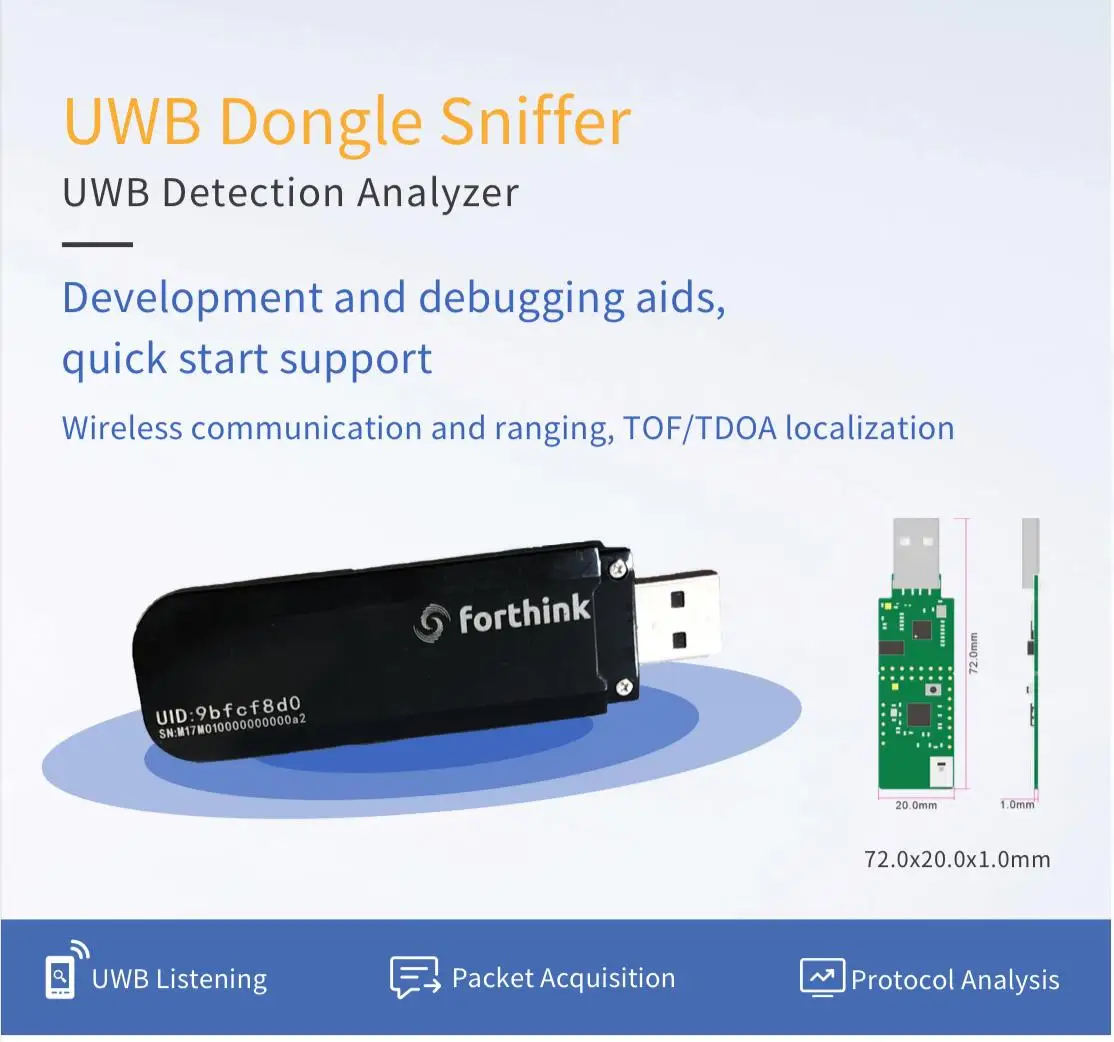

• Dimensions: Ultra-slim module size of 72 x 20 x 1-mm
• Operating Conditions: Operates reliably across a temperature range of -20℃ ~ 60℃
